GGU-UNDERPIN: Underpinning body

The underpinning body is defined in horizontal sections of three values each:

  • depth of section below top of the wall
  • corresponding left and right wall boundary

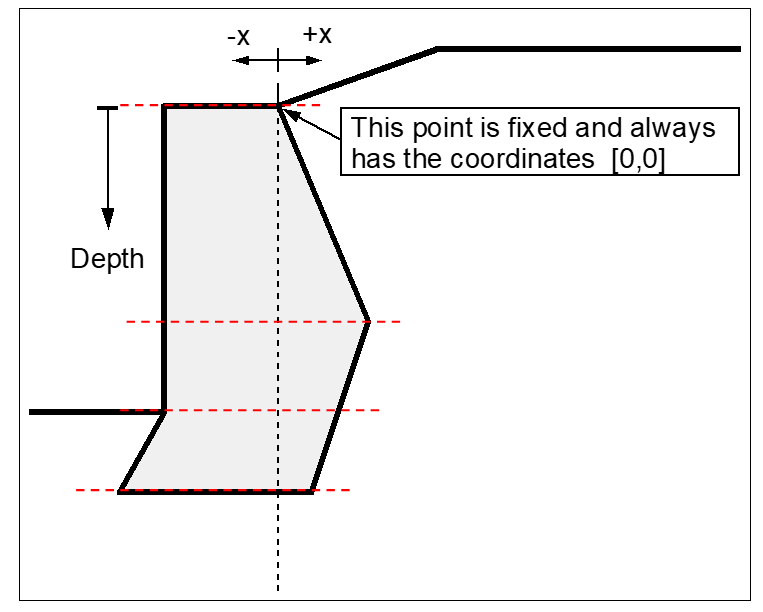

To define the body of figure 2, you must enter the depth and corresponding two x-values in four horizontal sections. In addition, you can specify a base inclination.
