GGU-UPLIFT: Description of the system (Ex. 1)

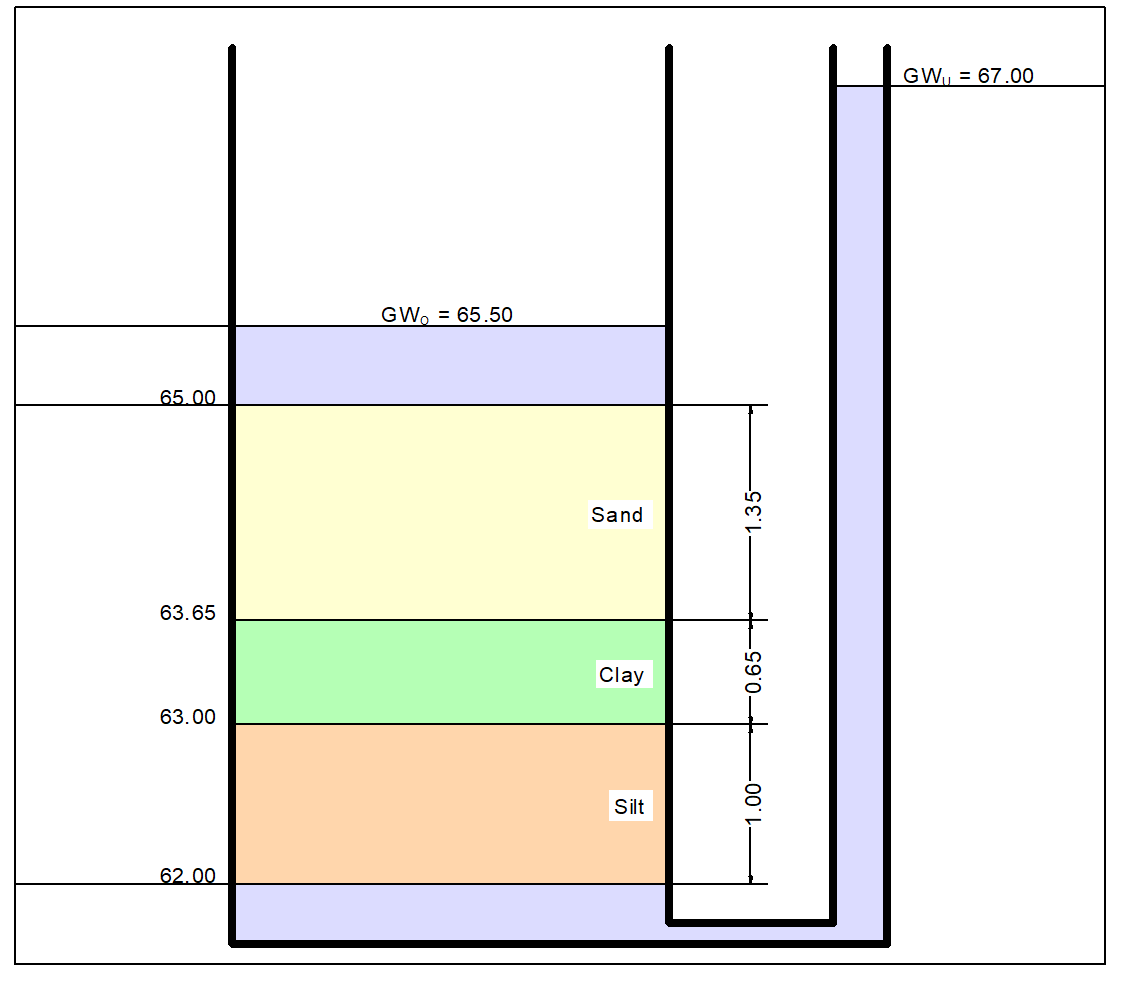

The following system is to be calculated:

The following data are given:

• Base of excavation = 65.00 m AD
• Water level at top of system = GWT = 65.50 m AD
• Water level at bottom of system = GWB = 67.00 m AD

Soil	Base [m AD]	Permeability [m/s]	image-20241024-090703.png [kN/m³]
Sand	63.65	10-4	19/10
Clay	63.00	10-8	20/11
Silt	62.00	10-7	19/10
